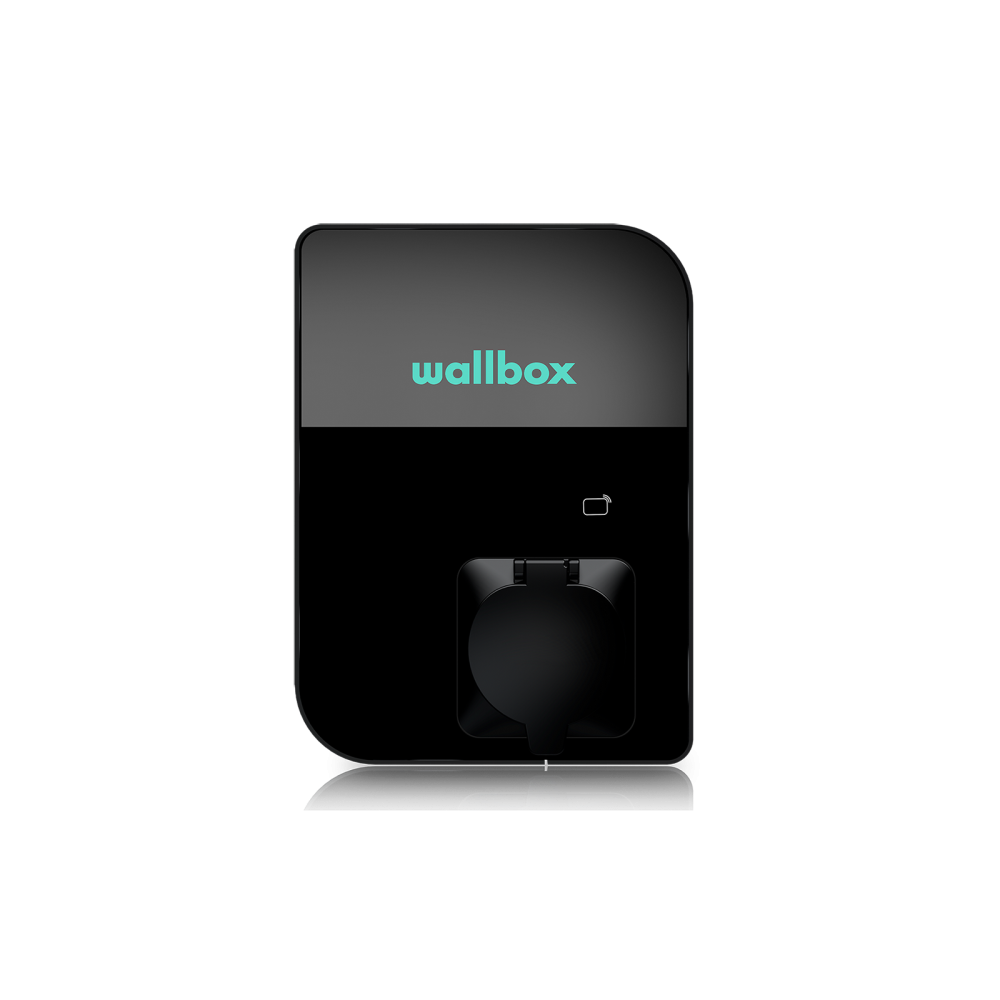

Wallbox Copper SB EV Charger
Smart charging designed for endless possibilities.
Wallbox Copper SB is a smart AC EV charger with an integrated socket, designed for flexible EV charging at homes, offices, commercial buildings, apartments, shared parking and fleet locations.
Its socket-based design supports charging for any compatible EV using the correct Type 1 or Type 2 charging cable. It also supports secure shared access through RFID cards or the myWallbox app.
With up to 22kW charging capacity, Wi-Fi / Ethernet / Bluetooth connectivity, optional 3G-4G, Power Sharing, myWallbox platform control and three-year warranty, Copper SB is suitable for both private and shared EV charging deployments.
Package Options
7.4kW Single Phase AC Charging
Supply, installation, commissioning and training package.
- Charge output adjustable from 3.7kW to 7.4kW
- Installation available nationwide Malaysia
- With myWallbox app and account
- Suitable for single-phase EV charger installation
22kW Three Phase AC Charging
Supply, installation, commissioning and training package.
- Charge output adjustable from 7.4kW to 22kW
- Installation available nationwide Malaysia
- With myWallbox app and account
- Suitable for three-phase EV charger installation
Smart Charging Designed for Shared and Flexible Use
Powerful EV Charge
Supports up to 22kW of AC charging capacity for compatible EVs and suitable three-phase installations.

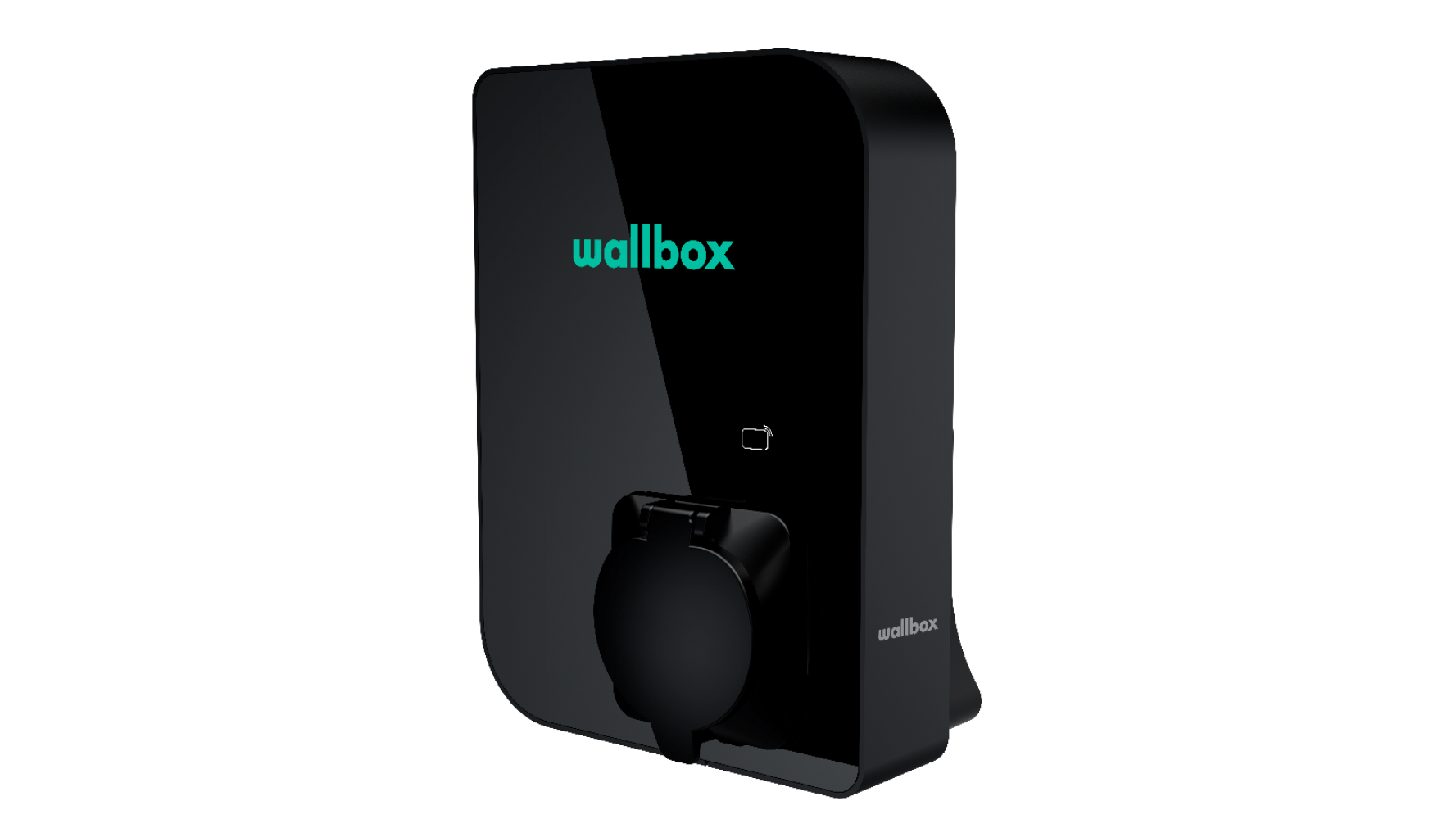

Flexible Socket Design

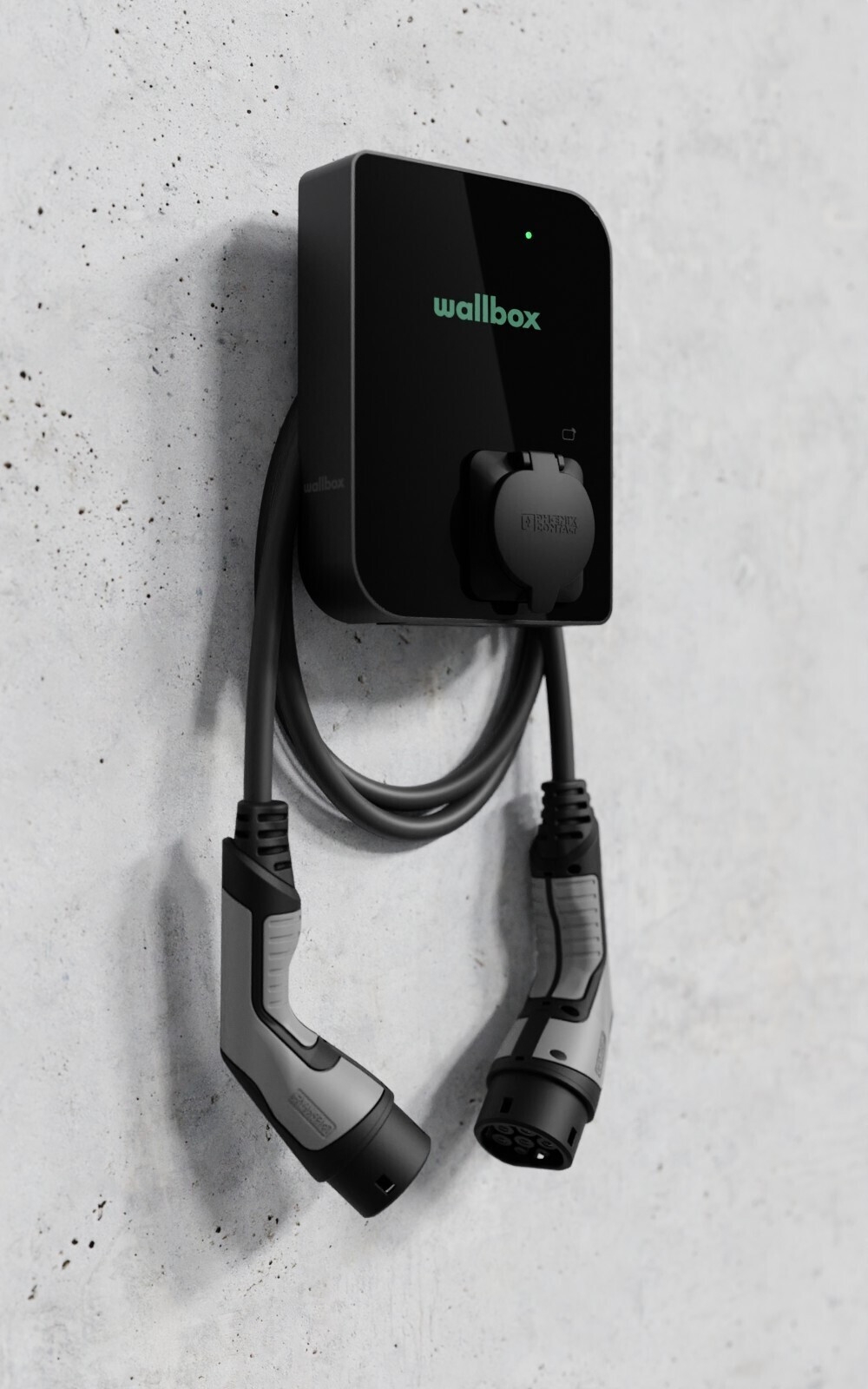

Integrated socket allows charging for compatible EVs using the correct Type 1 or Type 2 cable.
Easy to Share
Secure shared access through RFID cards or the myWallbox app for controlled user access.
Controllable
Smart control your charger using the myWallbox platform, app and portal.
Connected
Connects via Wi-Fi, Bluetooth, Ethernet or optional 3G-4G.
Power Sharing
Connect two or more chargers to the same electrical circuit and charge multiple EVs at once.
Installation Package
7.4kW Installation Scope
- EV junction box enclosure
- 1 phase 2 pole MCB 32A, branded
- 1 phase 2 pole RCCB 40A, branded
- 1 phase 2 pole isolator switch 32A, branded
- Up to 15m of 2.5mm² x 3C PVC cable with PVC conduit
- Supply, installation, testing, commissioning and training
22kW Installation Scope
- EV junction box enclosure
- 3 phase 4 pole MCB 40A, branded
- 3 phase 4 pole RCCB 40A, branded
- 3 phase 3 pole isolator switch 35A, branded
- Up to 15m of 6mm² PVC cable with PVC conduit
- Supply, installation, testing, commissioning and training

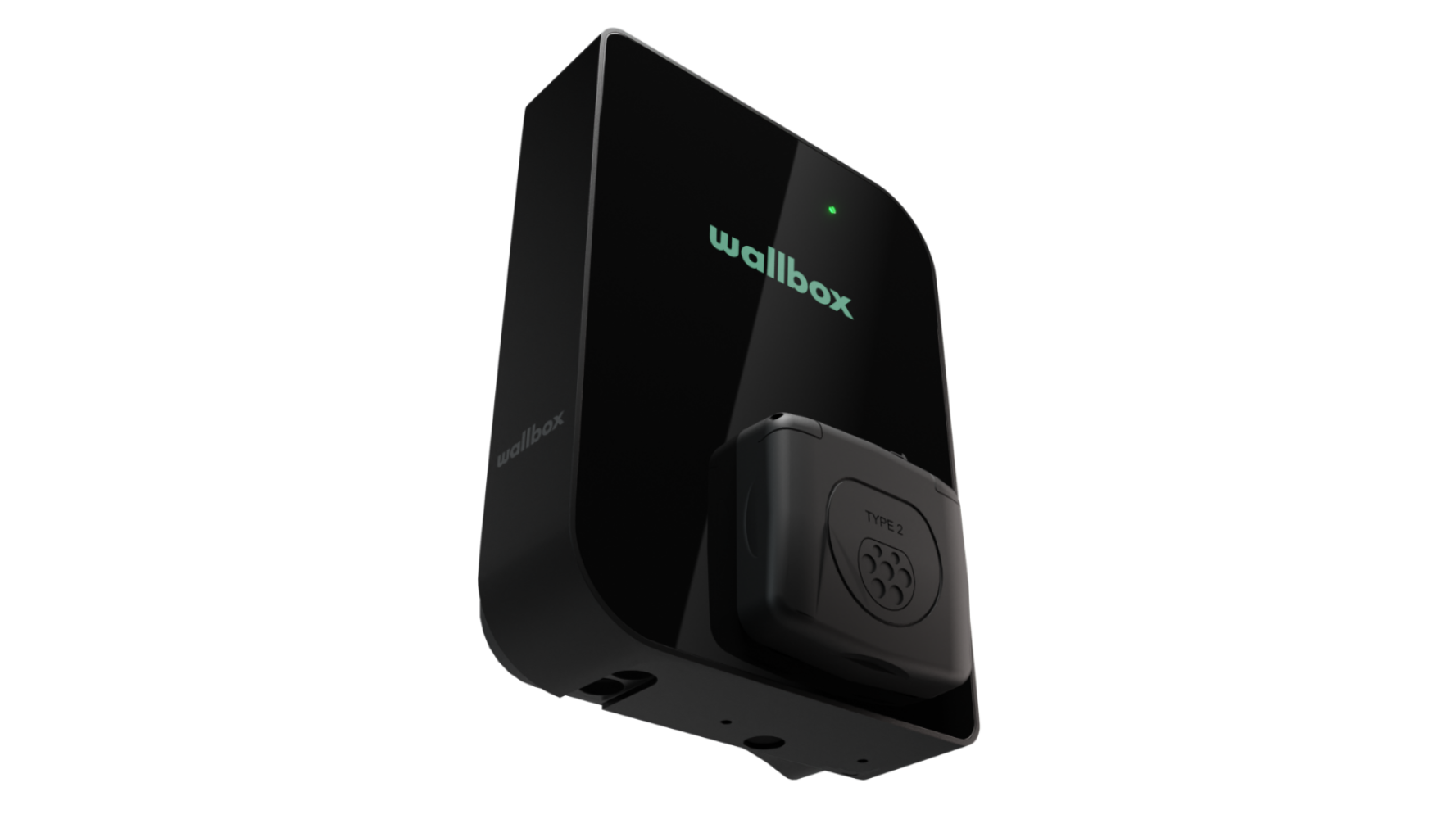

Product Details
| General Specification | Wallbox Copper SB |
|---|---|
| Product Type | Smart AC EV charger with integrated socket |
| Colour | Black |
| Charging Mode | Mode 3 |
| Dimensions | 260 x 192 x 113mm |
| Weight | 2kg |
| Durability | Safely install and use indoors or outdoors |
| Warranty | Three-year warranty |
| Connectivity and User Interface | Wallbox Copper SB |
|---|---|
| Connectivity | Wi-Fi / Ethernet / Bluetooth / optional 3G-4G |
| User Identification | RFID card / myWallbox app |
| User Interface | myWallbox app and portal |
| Charger Status Information | RGB LED / myWallbox app and portal |
| Included Features | Power Sharing |
| Optional Features | Power Boost / Dynamic Power Sharing / MID Meter |
| Communication Protocol | myWallbox / OCPP 1.6j |
Electrical Specification
| Electrical Item | Specification |
|---|---|
| Maximum Charging Power | 7.4kW single phase / 22kW three phase |
| Rated Voltage AC ±10% | 220V to 240V for 7.4kW / 400V for 11kW and 22kW |
| Rated Current | 32A for 7.4kW single phase / 16A for 11kW three phase / 32A for 22kW three phase |
| Connector Type | Socket, Type 1 and Type 2 |
| Cable Section | 5 x 10mm² |
| Configurable Current | From 6A to rated current |
| Protection Rating | IP54 / IK10 |
| Residual Current Detection | DC 6mA |
Why Choose Wallbox Copper SB?
Good for Shared Charging
RFID and myWallbox access make Copper SB suitable for shared charging in offices, apartments, car parks and fleet locations.
Flexible EV Compatibility
The integrated socket design supports compatible EVs using the correct Type 1 or Type 2 charging cable.
Energy Management Ready
Power Sharing is included, while Power Boost, Dynamic Power Sharing and MID meter are available as optional features.
App-Based Control
myWallbox app and portal allow charger monitoring, management and user control.
Indoor and Outdoor Use
IP54 / IK10 protection supports indoor and outdoor installation depending on site conditions.
European Design
Developed and manufactured in Europe, Copper SB is designed to last and carries a three-year warranty.
Supply, Installation, Testing and Commissioning
Every EV charger installation should be checked for supply capacity, cable route, protection device rating, charger location, earthing condition and user access before installation.
Site Assessment
Review incoming supply, charger location, cable route, DB space, protection requirement and parking bay layout.
Electrical Installation
Install EV junction box, protection devices, cable, conduit and charger according to the approved installation scope.
App Setup
Configure myWallbox app and account, user access, RFID card setup and charger settings.
Testing
Perform charger functionality check and protection verification before final handover.
Commissioning
Verify charging operation, configurable current, LED status, app connection and user access.
User Training
Provide basic training for charger operation, myWallbox app use, RFID access and safe charging practice.
Suitable Applications

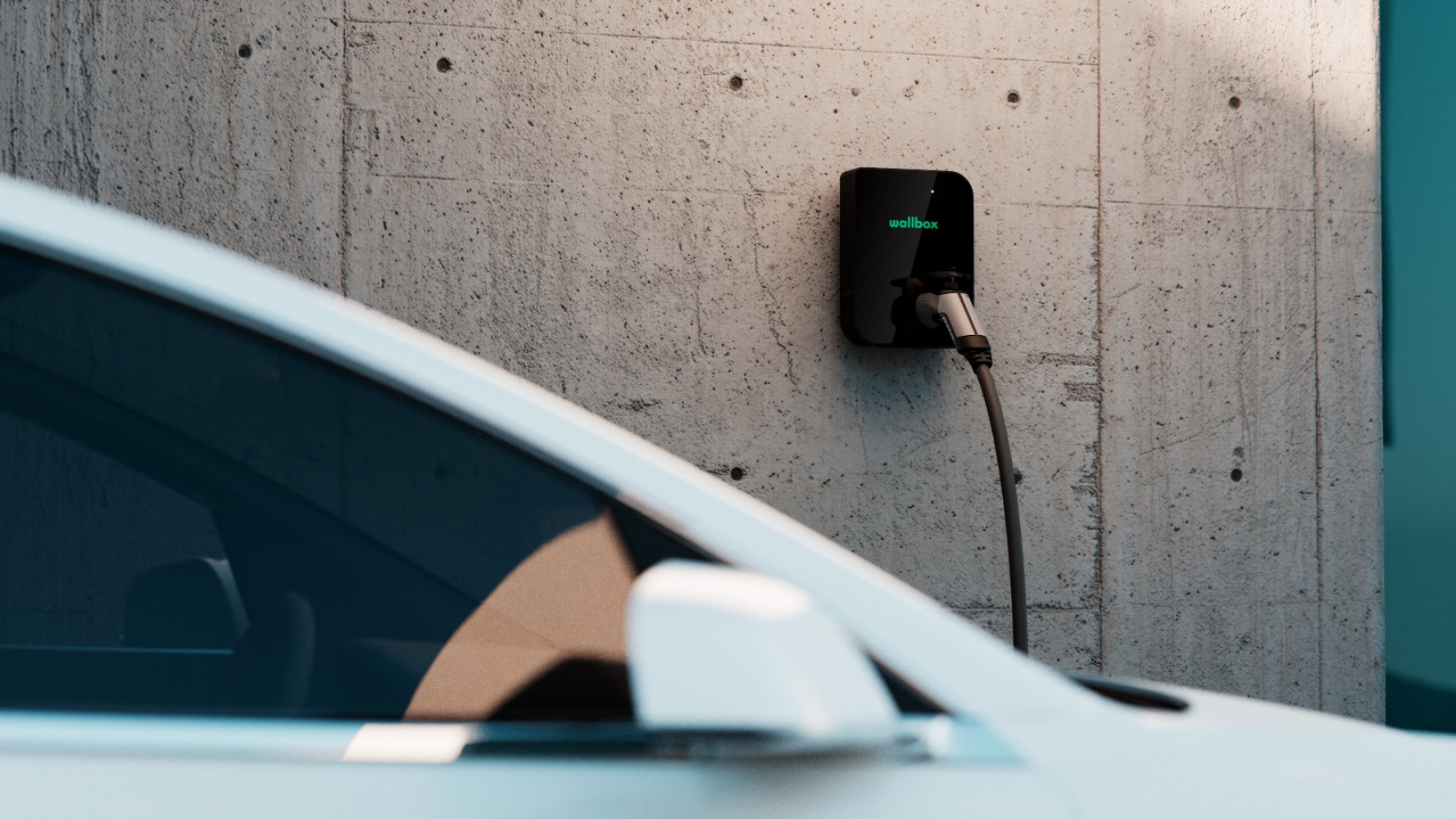

Home EV Charging
Suitable for residential EV owners who want smart app-based EV charging.
Apartments and Condominiums
RFID and app access make it suitable for shared residential parking areas.

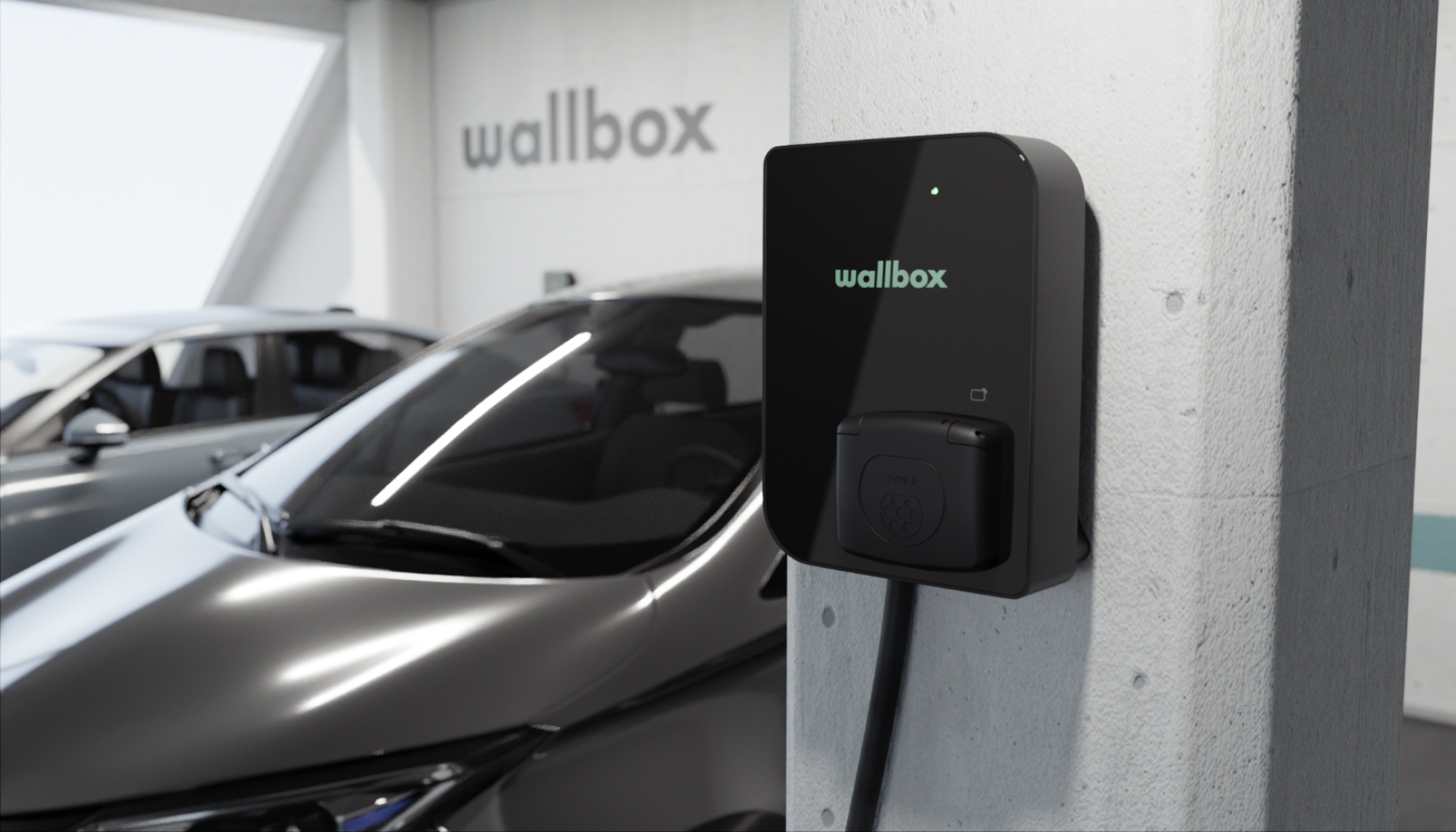

Commercial Buildings
Suitable for offices, shop lots, retail outlets and business parking areas.
Fleet Charging
Power Sharing and app control support multiple charger management for small fleet locations.
Hotels and Hospitality
Useful for guest EV charging where controlled user access is required.
Shared Car Parks
Suitable for car parks where several users may require controlled EV charging access.
Product Summary
Wallbox Copper SB is a smart AC EV charger designed for flexible, shared and connected charging.
With 7.4kW single phase and 22kW three phase options, integrated Type 1 / Type 2 socket, RFID card access, myWallbox app and portal, Wi-Fi / Ethernet / Bluetooth, optional 3G-4G, Power Sharing, OCPP 1.6j, IP54 / IK10 protection and three-year warranty, Copper SB is suitable for homes, offices, apartments, car parks, hospitality sites and fleet charging locations.
Contact us for charger selection, installation package, testing, commissioning and myWallbox setup.
